2014 BMW 320i — lead photograph

2014 · N20 2.0L turbocharged inline-four

2014 BMW 320i

Oil pan gasket and subframe removal.

System

Engine / Chassis

Role

Diagnosis + repair

Status

Complete

Photographs

8

Summary

A major oil leak turned into a lesson in packaging and serviceability on a modern turbocharged car. The repair required lowering the front subframe, careful reassembly, and correct torque procedures.

EngineN20 2.0L turbocharged inline-four
JobOil pan gasket
AccessSubframe drop required
Dealer quote$600+
Parts cost$150

The problem

A significant oil leak traced to the oil pan gasket. The dealership quoted over $600.

Why it is not a simple gasket job

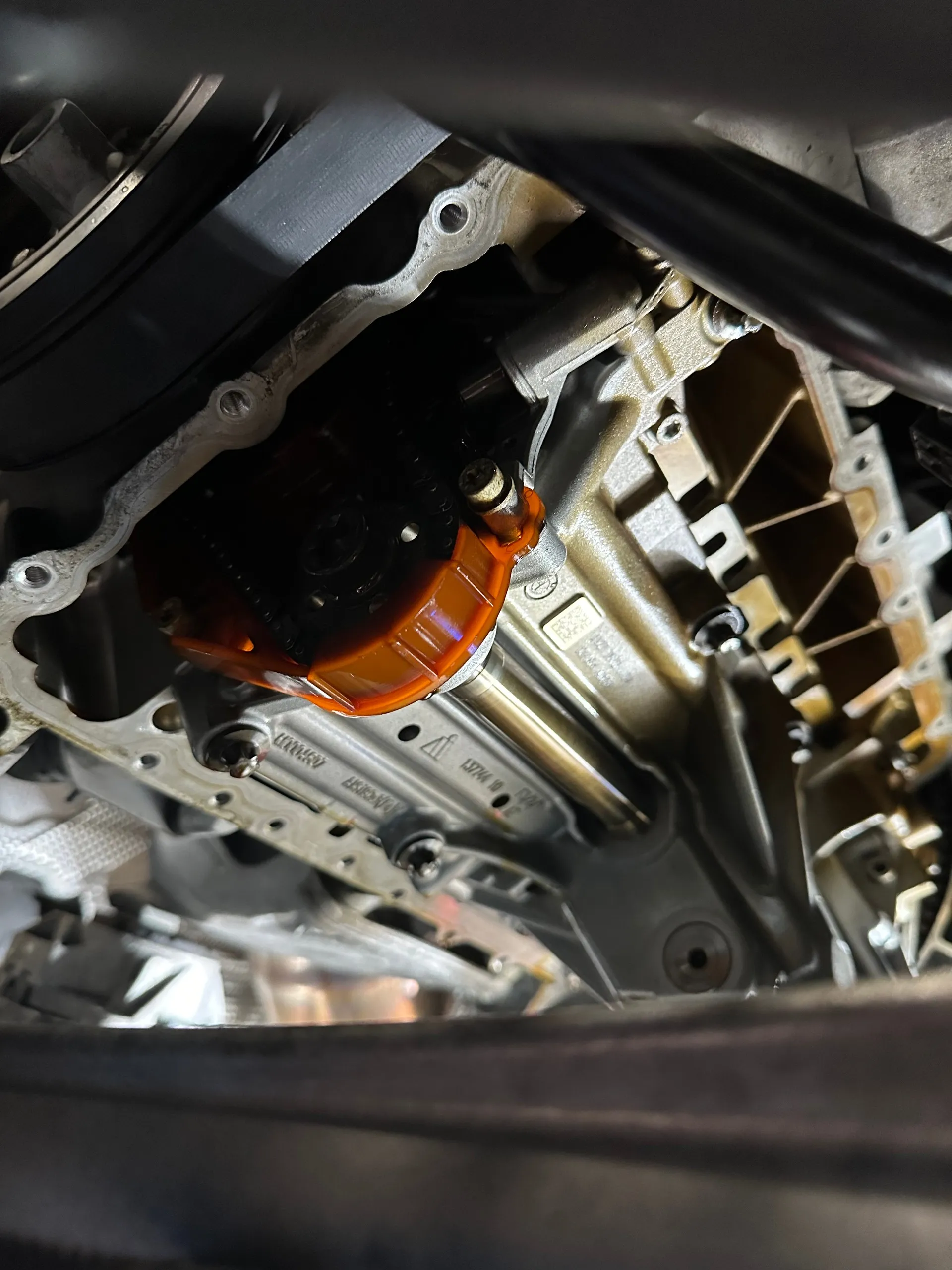

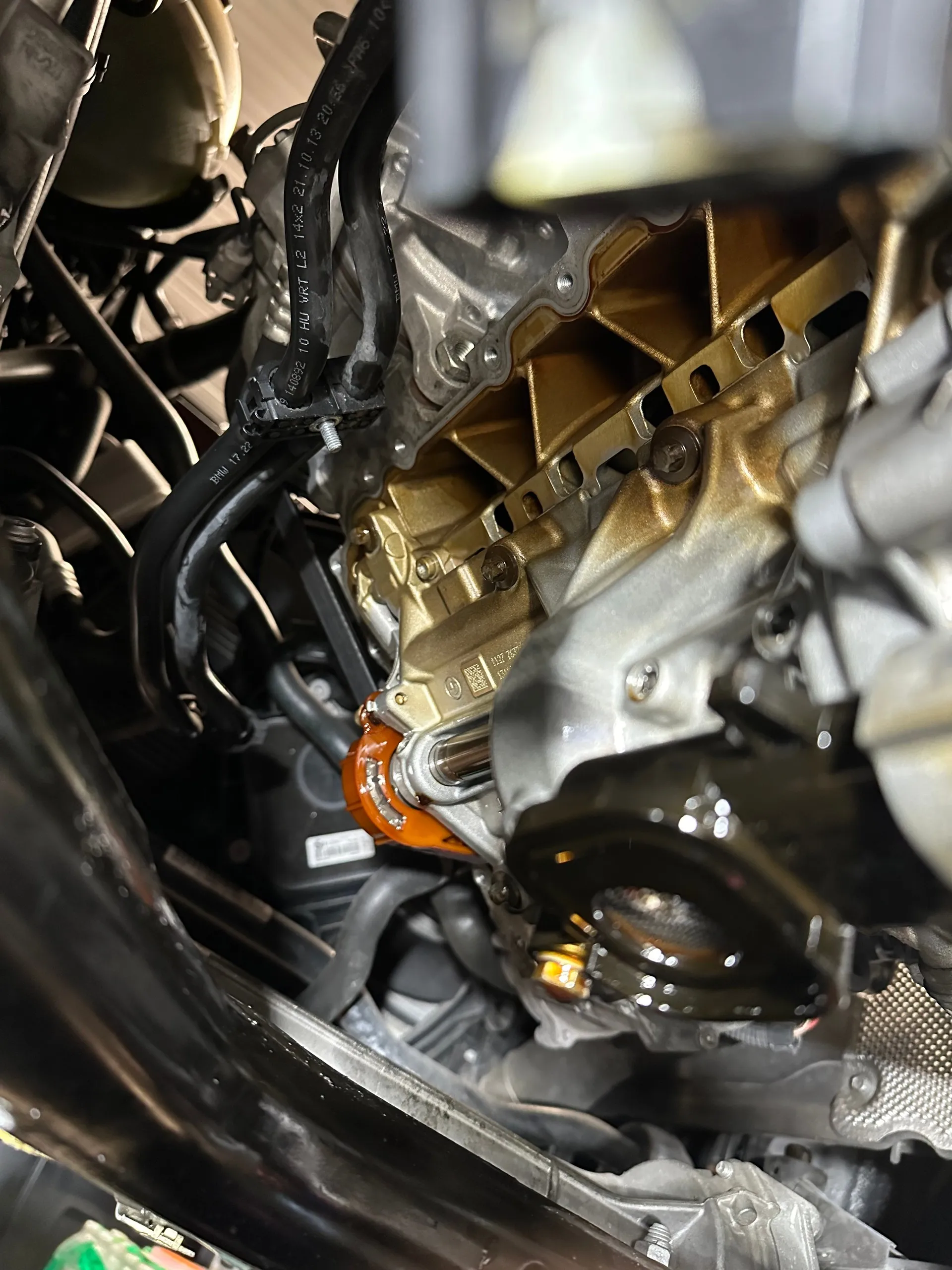

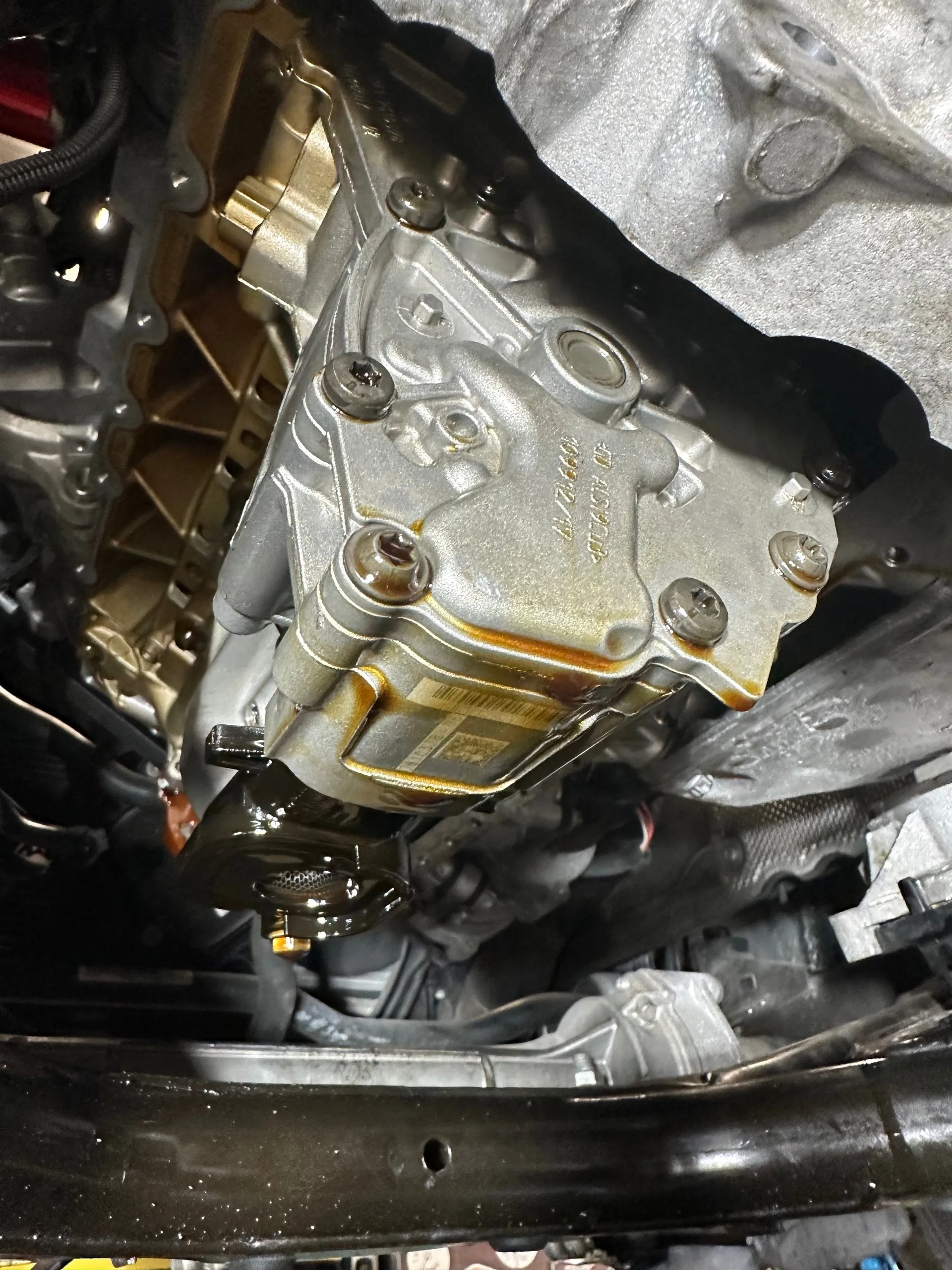

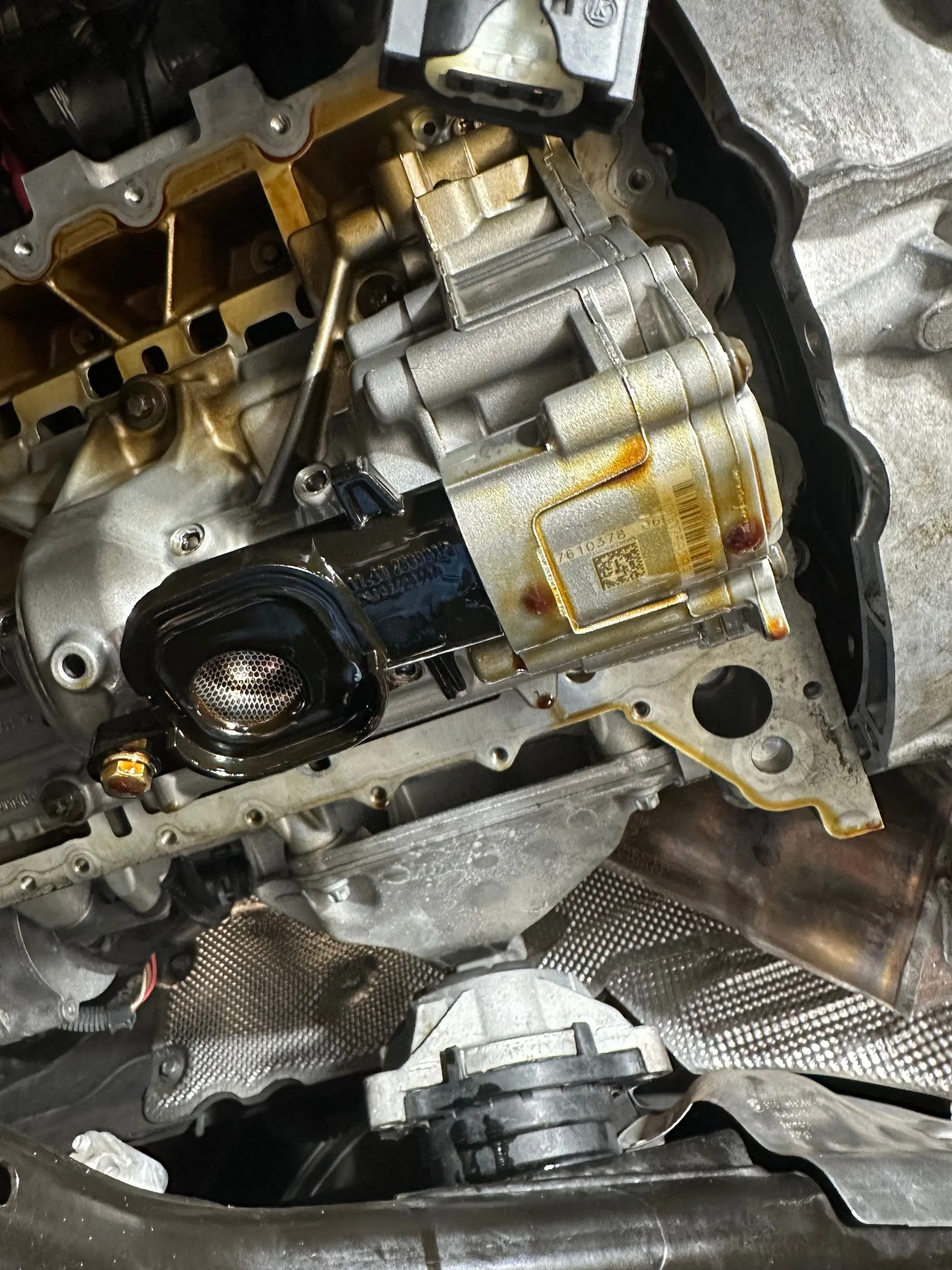

On this chassis the oil pan is not accessible without dropping the subframe. That turns a straightforward gasket replacement into a job requiring careful sequencing, correct torque on reassembly, and attention to a modern turbocharged engine that is far less tolerant of approximation than an older motor.

The outcome

Done for roughly $150 in parts. The saving is the least interesting part — the useful outcome was learning how much of a dealership labour quote is access rather than difficulty, and that the difference is available to anyone willing to read the procedure carefully and work slowly.
